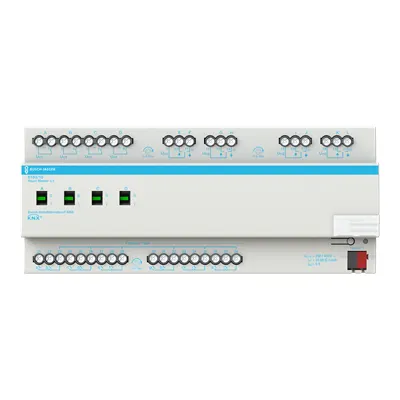

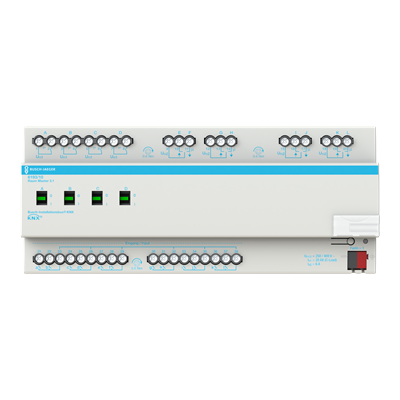

2CKA006189A0103
Part Number: 2CKA006189A0103
Product Information
Extended Description
2CKA006189A0103 ABB: Additionally, four blind outputs are available, which can also be programmed as switching outputs. The individual blind outputs are locked against each other as switchover contacts on the hardware side. Also twelve floating binary inputs are available via which each of the outputs (switching and blind) can be operated. The binary inputs can be programmed purely as KNX participants.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6193/10
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6193/10
Number of Outputs
8
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 12
Number of Input Channels
12
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Output Voltage (Uout)
230 V AC
Maximum Switching Current
20 A
Power Loss
5.15 W
Color
white
Width in Number of Modular Spacings
12.0
Product Net Width
90 mm
Product Net Height
64.5 mm
Product Net Depth / Length
216 mm
Product Net Weight
0.55 kg
Replacement Product ID (NEW)
2CDG110165R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6193/10
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
