2CKA006189A0105
Part Number: 2CKA006189A0105
Product Information
Extended Description

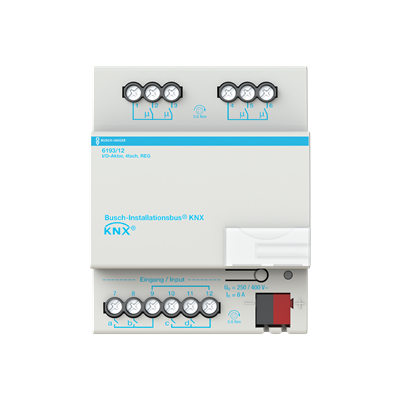

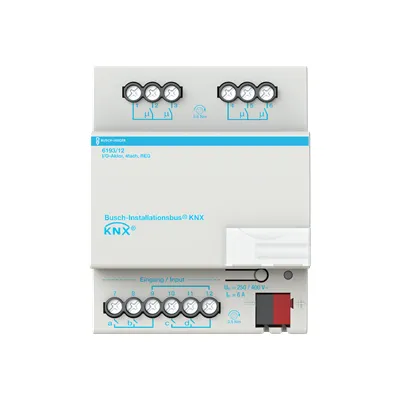

2CKA006189A0105 ABB: The I/O actuator has 4 outputs for activating electric light circuits. Four floating binary inputs are available for operating the outputs. The binary inputs can be programmed purely as KNX participants.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6193/12 6193/14
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6193/12 6193/14
Special Functions
Switching
Sub-Function
LED controlling
Maximum Number of Switching Outputs
4
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Number of Input Channels
4
Number of Output Channels
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Suitable for C-Load
No
Number of Batteries
0
Current Type
AC
Rated Operational Voltage
110 ... 230 V AC
Auxiliary Voltage AC/DC
KNX
Input Voltage (Uin)
230 V AC
Output Voltage (Uout)
230 V AC
Rated Current (In)
6 A
Maximum Switching Current
6 A
Maximum Switching Power
1200 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.17 kg
Replacement Product ID (NEW)
2CDG110168R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6193/12
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
