2CKA006190A0031
Part Number: 2CKA006190A0031
Product Information
Extended Description

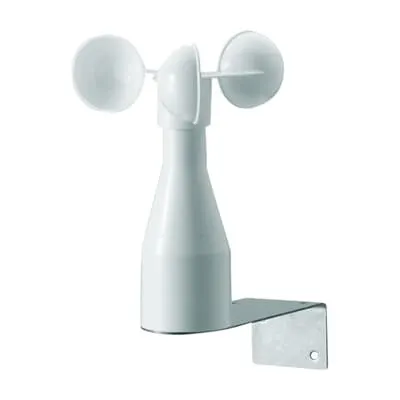

2CKA006190A0031 ABB: For Weather Station 6190/40-101. Serves for converting the detected wind velocity (0.7-40 m/s) into electrical signals (0-10 V). With PTC heating element for winter operation (in combination with filament transformer 6190/49). Incl. 3 m supply lead LIYY 6 x 0.25 mm². The delivery includes a adapter for mast or wall mounting.
Instructions and Manuals
Installation and Operating instructions (.PDF) [DE] 6190/41; 6190/43
Wiring Diagram
Connection diagramm (.SVG) [XX] 6190/41
Mounting Type
Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -25 ... +60 °C
Degree of Protection
IP65
Data Sheet, Technical Information
Technical Data (.PDF) [DE] 6190/41
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Cable Length
3 m
Rated Voltage (Ur)
24 V
Auxiliary Voltage AC/DC
24 V AC/DC
Product Net Width
125 mm
Product Net Height
160 mm
Product Net Depth / Length
125 mm
Product Net Weight
279 g
Dimension Diagram
Dimension drawing (.SVG) [XX] 6190/41
E-Number (Finland)
2818989
E-Number (Norway)
4544063
RoHS Information
Product Declaration.PDF [EN] 6190/41
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6190/41
ETIM 9
EC000926 - Physical sensor for bus system
eClass
V11.0 : 27143137
