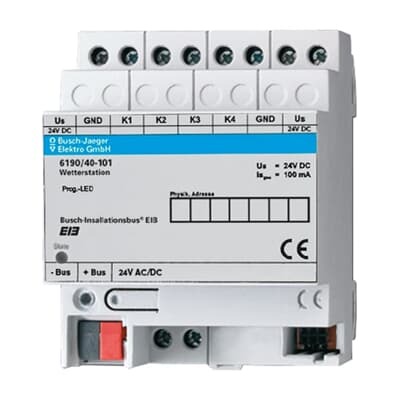

2CKA006190A0037
Part Number: 2CKA006190A0037
Product Information
Extended Description
2CKA006190A0037 ABB: Sensor for connecting measured-value transmitters 6190/41-6190/45 (pre-set) or 4 analogue measuring sensors 0-1 V, 0-5 V, 0-10 V (impedance 18 kiloOhm) or 0-20 mA, 4-20 mA (impedance 100 Ohm). 2 outputs 24 V, max. 100 mA, (total for both outputs) for measured-value transmitters External 24 V AC power supply / filament transformer (6190/49-101) is required. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE] 6190/40-101
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6190/40-101
Number of Outputs
2
Number of Inputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Rated Voltage (Ur)
24 V
Secondary Voltage
24 V
Auxiliary Voltage AC/DC
24 V AC/DC
Output Voltage (Uout)
24 ... 24 V
Rated Current (In)
100 A
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
94 mm
Product Net Depth / Length
70 mm
Product Net Weight
151 g
Built-In Depth (t2)
58 mm
Dimension Diagram
Dimension drawing [EN] Series installation 1gang
RoHS Information
Product Declaration.PDF [EN] 6190/40-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6190/40-101
ETIM 9
EC001096 - Analogue actuator for bus system
eClass
V11.0 : 27143109
