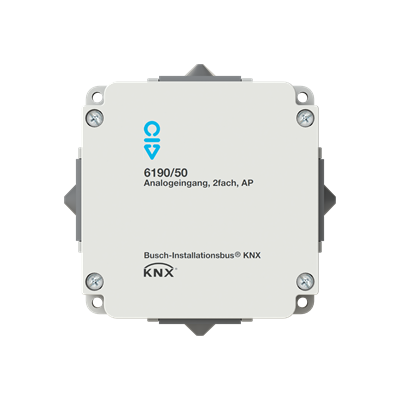

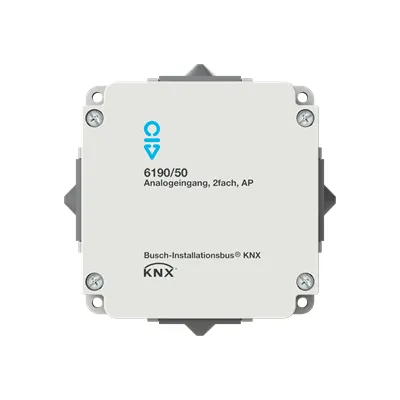

2CKA006190A0042
Part Number: 2CKA006190A0042
Product Information
Extended Description
2CKA006190A0042 ABB: For detecting 2 analogue input signals. These are, among others: 0-1 V, 0-5 V, 0-10 V, 1-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT100, PT1000, floating contact, KT,KTY and user-defined.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6190/50
Mounting Type
Surface Mounted
Degree of Protection
IP54
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6190/50
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Analog Inputs
2
Color
light grey
Product Net Width
117 mm
Product Net Height
51 mm
Product Net Depth / Length
117 mm
Product Net Weight
0.25 kg
Replacement Product ID (NEW)
2CDG110086R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6190/50
ETIM 9
EC000794 - Analogue input for bus system
eClass
V11.0 : 27143107
