2CKA006190A0045
Part Number: 2CKA006190A0045
Product Information
Extended Description

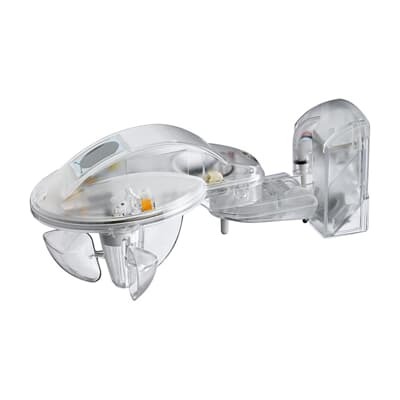

2CKA006190A0045 ABB: For weather station 6190/10-101. For converting to electrical signals measurement data such as twilight (1 - 999 Lux), brightness in three directions (1000 - 99000 Lux), rain, temperature (-30 - +50°C), wind speed (0-24.0 m/s), day/night. Incl. heating and GPS receiver.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6190/11-102
Wiring Diagram
Product Manual (.PDF) [DE] WZ/S 1.3.1.2
Mounting Type
Surface Mounted
Ambient Air Temperature
Operation -25 ... +60 °C
Degree of Protection
IP44
Data Sheet, Technical Information
Product Manual (.PDF) [DE] WZ/S 1.3.1.2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Additional Information
Heater included
Number of Batteries
0
Auxiliary Voltage AC/DC
24 V DC
Rated Current (In)
0.2 A
Power Loss
4.15 W
Color
transparent
Product Net Width
121 mm
Product Net Height
109 mm
Product Net Depth / Length
227 mm
Product Net Weight
0.36 kg
Dimension Diagram
Product Manual (.PDF) [DE] WZ/S 1.3.1.2
Replacement Product ID (NEW)
2CDG120091R0011
RoHS Information
Product Declaration.PDF [EN] 6190/11-102
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6190/11-102
ETIM 9
EC000926 - Physical sensor for bus system
eClass
V11.0 : 27143137
Object Classification Code
A
