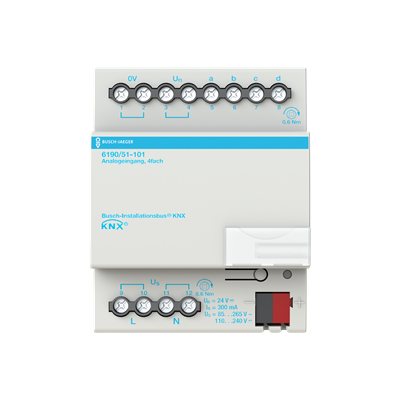

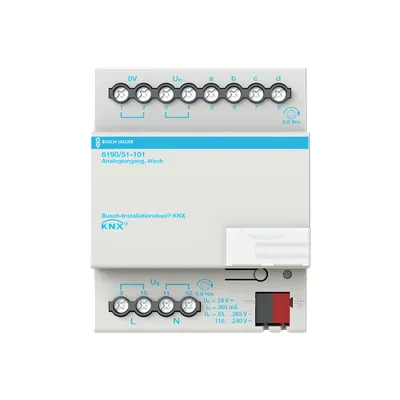

2CKA006190A0046
Part Number: 2CKA006190A0046
Product Information
Extended Description
2CKA006190A0046 ABB: The analogue input enables the detection and processing of four analogue input signals. These are, among others: 0-1 V, 0-5 V, 0-10 V, 1-10 V, 0-20 mA, 4-20 mA, 0-1000 ohm, Pt100, floating contact, KT, KTY, and user-defined. A power pack with 24 V DC voltage has been integrated to supply the sensors.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6190/51-101
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [DE] AE/S 4.1.1.3
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Analog Inputs
4
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.23 kg
Replacement Product ID (NEW)
2CDG110190R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6190/51-101
ETIM 9
EC000794 - Analogue input for bus system
eClass
V11.0 : 27143107
