2CKA006197A0035
Part Number: 2CKA006197A0035
Product Information
Extended Description

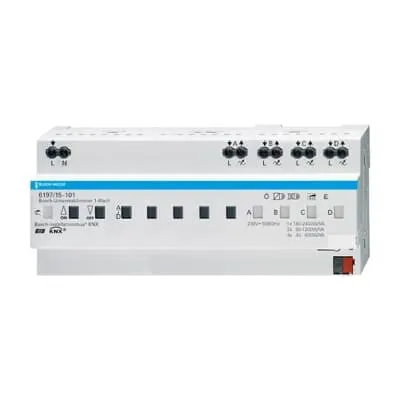

2CKA006197A0035 ABB: Multichannel universal dimming actuator for controlling incandescent lamps, 230 V incandescent halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps. Optimized for dimming of Philips retrofit LEDs (LEDi). Increasing the max. load via channel bridging possible. The outputs can be switched parallel in any combination. Outputs automatically recognise the connected load. In addition, the operating mode can be selected manually. Status indication of the channels via LED. Direct manual operation with / without KNX voltage connected or in an unprogrammed status possible. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
Instructions and Manuals
DEBJE-0173-1-7794
Wiring Diagram
Connection diagram [EN] 6197_12b
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6197/XX-101 6197/XX-101-500
Number of Outputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Operational Voltage
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Frequency (f)
50 / 60 Hz
Load Type
Universal | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Width in Number of Modular Spacings
120.0
Product Net Width
0.1 m
Product Net Height
0.806 m
Product Net Depth / Length
0.2 m
Product Net Weight
649 g
Built-In Depth (t2)
64.5 mm
RoHS Information
Product Declaration.PDF [EN] 6197/15-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6197/15-101
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
