2CKA006197A0039
Part Number: 2CKA006197A0039
Product Information
Extended Description

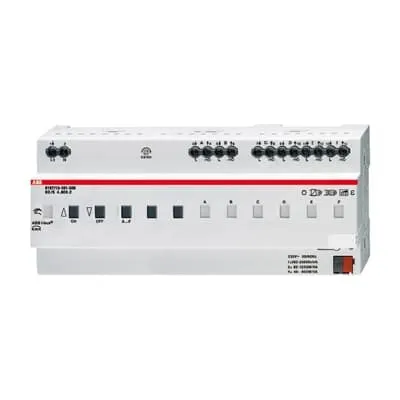

2CKA006197A0039 ABB: Multichannel universal dimming actuator for controlling incandescent lamps, 230 V incandescent halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps. Optimized for dimming of Philips retrofit LEDs (LEDi). Increasing the max. load via channel bridging possible. The outputs can be switched parallel in any combination. Outputs automatically recognise the connected load. In addition, the operating mode can be selected manually. Status indication of the channels via LED. Direct manual operation with / without KNX voltage connected or in an unprogrammed status possible. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
Instructions and Manuals
DEBJE-ba_0373_1_7211_6197-12-500-Man
Wiring Diagram
Connection diagram [EN] 6197_12b
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6197/XX-101-(500)
Number of Outputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Frequency (f)
50 / 60 Hz
Load Type
Universal | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Width in Number of Modular Spacings
12.0
Product Net Width
0.11 m
Product Net Height
0.06 m
Product Net Depth / Length
0.14 m
Product Net Weight
0.649 kg
E-Number (Finland)
2815422
E-Number (Sweden)
1751073
RoHS Information
Product Declaration.PDF [EN] 6197/15-101-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6197/15-101-500
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] 6197_15-101-500
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
