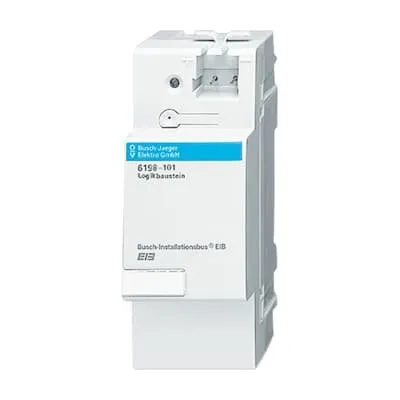

2CKA006198A0103
Part Number: 2CKA006198A0103
Product Information
Extended Description
2CKA006198A0103 ABB: For logic operation of addresses, delay of the output signal possible, light scene storage, filter function. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6198-101
Wiring Diagram
Connection diagram [EN] 6198_10
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6198-101
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Voltage Range
KNX
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
64.5 mm
Product Net Height
90 mm
Product Net Depth / Length
36 mm
Product Net Weight
0.09 kg
Dimension Diagram
Dimension drawing [EN] Series installation 1gang
Replacement Product ID (NEW)
GHQ6310080R0111
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6198-101
ETIM 9
EC000676 - Logic component for bus system
eClass
V11.0 : 27143103
UNSPSC
32151705
IDEA Granular Category Code (IGCC)
3567 >> PLC function/technology module
