2CKA006198A0108
Part Number: 2CKA006198A0108
Product Information
Extended Description

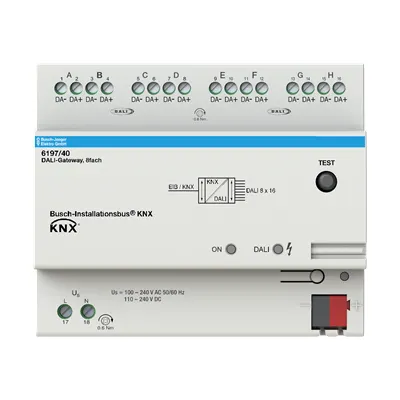

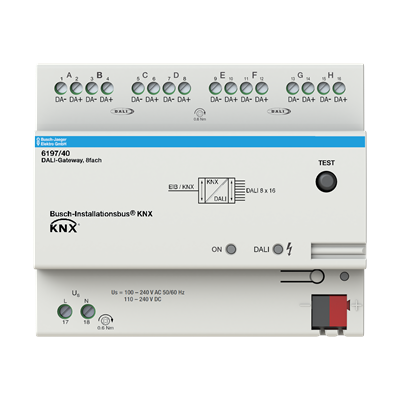

2CKA006198A0108 ABB: For the actuation of DALI-gears, e.g. electronic gears, via ABB i-bus® KNX. Up 128 DALI devices can be connected with a maximum of 16 per channel. Addressing or start-up of the DALI devices is not necessary.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6197/40
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6197/40
Communication Interface
DALI
Number of Outputs
8
Number of LEDs
1
Compatible Bus Systems
DALI | KNX (TP)
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
Yes
Terminal Type
Bus Connection
Auxiliary Voltage AC/DC
110 ... 230 V AC
Input Voltage (Uin)
230 V AC
Color
light grey
Width in Number of Modular Spacings
6.0
Product Net Width
108 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.266 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 6MW
Replacement Product ID (NEW)
2CDG110025R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6197/40
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
