2CKA006198A0110
Part Number: 2CKA006198A0110
Product Information
Extended Description

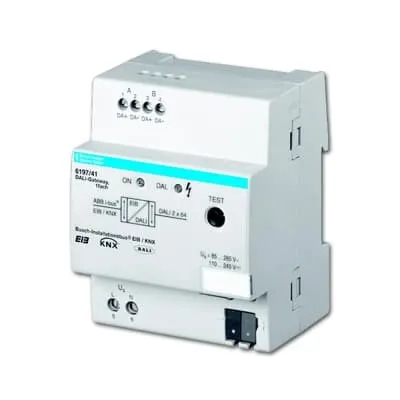

2CKA006198A0110 ABB: 1gang DALI-gateway Up to 64 DALI operating units can be connected to a main channel. The maximum of 64 DALI-gears are individually actuated via a KNX communication object. On a second auxiliary channel, an additional 64 DALI gears can be individually addressed in broadcast mode or through coded addressing with two communication objects (address + function). In addition, the setting of 15 light scenes is possible. The 64 DALI subscribers of a channel can be actuated together in broadcast mode or can be requested. The DALI address is assigned automatically in both channels via the DALI gateway. The individual DALI-address change is carried out using the DALI-gateway software tool and is also possible without ETS.
Mounting Type
Mounted Din Rail Component
Ambient Air Temperature
Operation -5...45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6197/41
Number of Outputs
2
Product Range
KNX
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Frequency (f)
50...60 Hz
Width in Number of Modular Spacings
4
Product Net Width
7.2 cm
Product Net Height
9 cm
Product Net Depth / Length
6.4 cm
Product Net Weight
0.148 kg
Replacement Product ID (NEW)
2CKA006197A0042
Replaced Product ID (OLD)
6198-0-0110
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6197/41
