2CKA006198A0114
Part Number: 2CKA006198A0114
Product Information
Extended Description

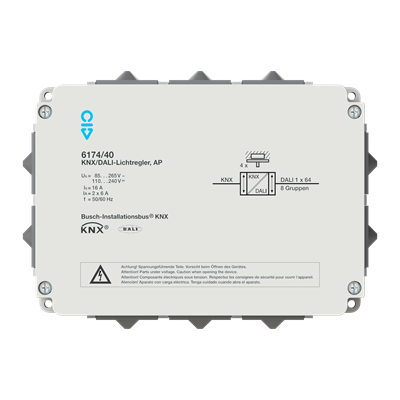

2CKA006198A0114 ABB: Device for switching and dimming 8 independent light groups with electronic DALI ballast units. 4 of the 8 lamp groups can regulate the brightness in interior rooms individually in connection with light sensor 6197/71. The device can be used in connection with up to 4 light sensors not only as KNX-DALI gateway, but also as light regulator for constant light regulation.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6174/40
Wiring Diagram
Connection diagram (.SVG) [XX] DLR/A 4.8.1.1
Mounting Type
Surface Mounted
Degree of Protection
IP54
Data Sheet, Technical Information
Product Manual (.PDF) [DE] 6174/40
Communication Interface
DALI
Number of Outputs
1
Compatible Bus Systems
DALI | KNX (TP)
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
110 ... 230 V AC
Color
light grey
Product Net Width
50 mm
Product Net Height
147 mm
Product Net Depth / Length
202 mm
Product Net Weight
0.51 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] DLR/A 4.8.1.1
Replacement Product ID (NEW)
2CDG110172R0011
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6174/40
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
