2CKA006200A0042
Part Number: 2CKA006200A0042
Product Information
Extended Description

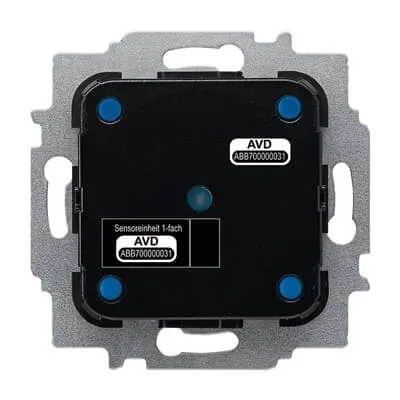

2CKA006200A0042 ABB: For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. Communication with the free@home system is carried out wireless. For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. With fixing claws.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Control Element
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Number of Buttons
1
Number of Actuation Points
2
Compatible Bus Systems
free@home wireless
Product Range
free@home
Transmission Standard
Wireless
Terminal Type
Screw Terminals
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC
Rated Frequency (f)
50 / 60 Hz
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Material
Thermoplastic
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
33 mm
Product Net Weight
87.5 g
Built-In Depth (t2)
32 mm
Replacement Product ID (NEW)
2CKA006800A3050 | 2CKA006200A0280
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6221/1.0-WL
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
