2CKA006200A0044
Part Number: 2CKA006200A0044
Product Information
Extended Description

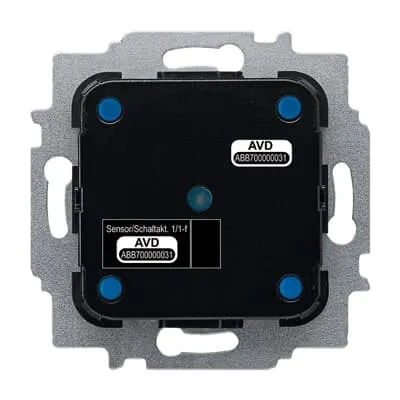

2CKA006200A0044 ABB: For switching 230 V~ consumers. Communication with the free@home system is carried out wireless. With integrated switch actuator. Switching function is available also without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. 3 wire connection (neutral conductor required). With 230 V extension unit input (On/Off). With fixing claws.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Number of Outputs
1
Maximum Number of Switching Outputs
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Number of Batteries
0
Rated Voltage (Ur)
230 V
Voltage Range
230 ... 230 V
Auxiliary Voltage AC/DC
230 V AC
Rated Current (In)
10 A
Maximum Switching Current
10 A
Rated Frequency (f)
50 / 60 Hz
Maximum Switching Power
2300 W
Load Type
Resistive load
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
33.9 mm
Product Net Weight
102.5 g
Built-In Depth (t2)
32 mm
Replacement Product ID (NEW)
2CKA006800A3041 | 2CKA006200A0280
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6211/1.1-WL
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
