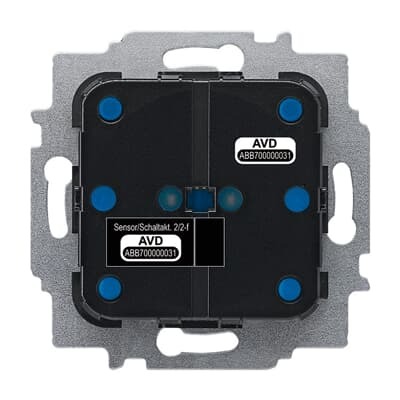

2CKA006200A0046
Part Number: 2CKA006200A0046
Product Information
Extended Description
2CKA006200A0046 ABB: For switching 230 V~ consumers. Communication with the free@home system is carried out wireless. With integrated 2gang switch actuator. Switching function is available also without prior programming (both sensor channels are pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. 3 wire connection (neutral conductor required). With two 230 V extension unit inputs (On/Off). With fixing claws.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Number of Outputs
2
Maximum Number of Switching Outputs
2
Compatible Bus Systems
free@home wireless
Product Range
free@home
Number of Batteries
0
Rated Voltage (Ur)
230 V
Voltage Range
230 ... 230 V
Auxiliary Voltage AC/DC
230 V AC
Rated Current (In)
5 A
Maximum Switching Current
6 A
Rated Frequency (f)
50 / 60 Hz
Maximum Switching Power
1380 W
Load Type
Resistive load
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
33.8 mm
Product Net Weight
106.5 g
Built-In Depth (t2)
32 mm
Replacement Product ID (NEW)
2CKA006800A3044 | 2CKA006200A0282
RoHS Information
Product Declaration.PDF [EN] 6211/2.2-WL
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6211/2.2-WL
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
