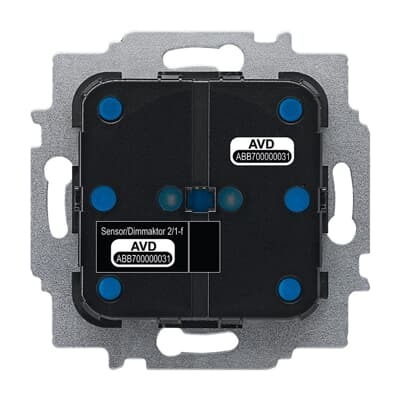

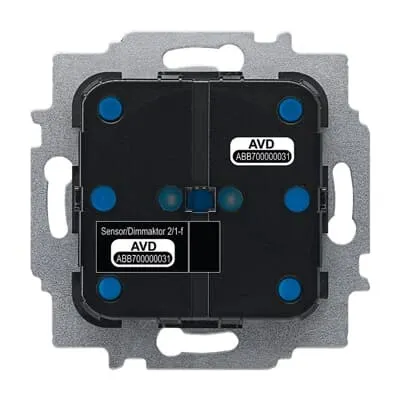

2CKA006200A0048
Part Number: 2CKA006200A0048
Product Information
Extended Description
2CKA006200A0048 ABB: For dimming 230 V~ loads. Communication with the free@home system is carried out wireless. With integrated universal dimming actuator for controlling LEDs, incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps. For dimmable Retrofit-LEDs (LEDi). Dimming function is available also without prior programming (left sensor channel is pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). The right sensor channel for programming additional functions (groups, scenes, etc.). For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. 2-wire connection (neutral conductor not required) 3-wire connection technology is possible as an option for improved load behaviour (for details see the online operating manual). With 230 V extension unit input (dimming brighter/darker, switching). With fixing claws.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Number of Outputs
1
Compatible Bus Systems
free@home wireless
Product Range
free@home
Number of Batteries
0
Rated Voltage (Ur)
230 V
Rated Operational Voltage
230...230 V
Auxiliary Voltage AC/DC
230 V AC
Rated Frequency (f)
50 / 60 Hz
Load Type
Universal and LED Retrofit | LEDi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
34 mm
Product Net Weight
109 g
Built-In Depth (t2)
32 mm
Replacement Product ID (NEW)
2CKA006500A0012 | 2CKA006200A0282
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6212/2.1-WL
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
