2CKA006200A0051
Part Number: 2CKA006200A0051
Product Information
Extended Description

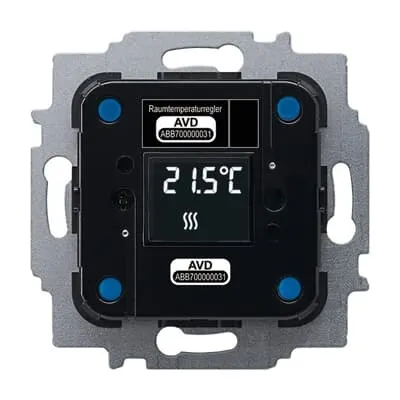

2CKA006200A0051 ABB: Heating/cooling operation. Communication with the free@home system is carried out wireless. Control element with room temperature controller function. With display of set-value temperature. In connection with temperature sensor 6226/T the integrated room temperature controller can be fitted with a remote sensor. Only to be used in combination with ABB-free@home® room temperature controller cover plates 6235-xxx. With fixing claws.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Control Element
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Compatible Bus Systems
free@home wireless
Operating Mode
Button
Product Range
free@home Wireless | free@home
Transmission Standard
Wireless
Rated Voltage (Ur)
230 V AC
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Frequency (f)
50/60 Hz
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Material
Thermoplastic
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
48 mm
Product Net Weight
98 g
Built-In Depth (t2)
31 mm
Screen Size
1 in
RoHS Information
Product Declaration.PDF [EN] 6224/2.0-WL
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6224/2.0-WL
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
