2CKA006200A0106
Part Number: 2CKA006200A0106
Product Information
Extended Description

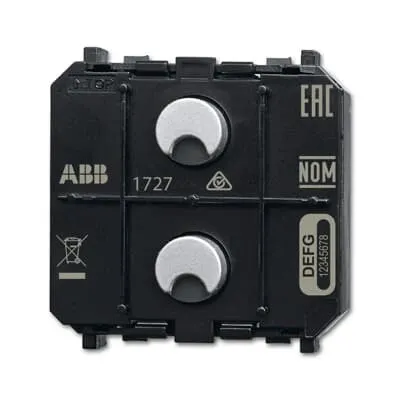

2CKA006200A0106 ABB: For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. Communication with the free@home system is carried out wireless. For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. With fixing claws.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Buttons
1
Number of Actuation Points
2
Compatible Bus Systems
free@home wireless
Product Range
free@home Wireless | free@home
Transmission Standard
Wireless
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC
Rated Frequency (f)
50 / 60 Hz
Design Range
Zenit
Product Net Width
45 mm
Product Net Height
45 mm
Product Net Depth / Length
40 mm
Product Net Weight
40.5 g
Built-In Depth (t2)
32 mm
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SU-F-1.0.PB.1-WL
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] SU-F-1.0.PB.1
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
UNSPSC
39121801
