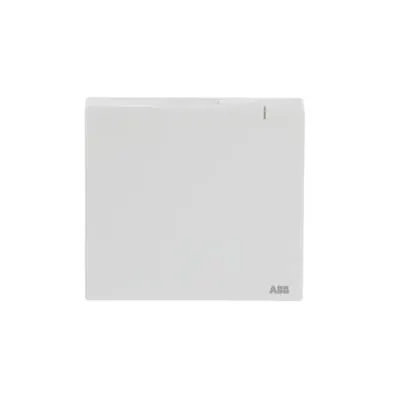

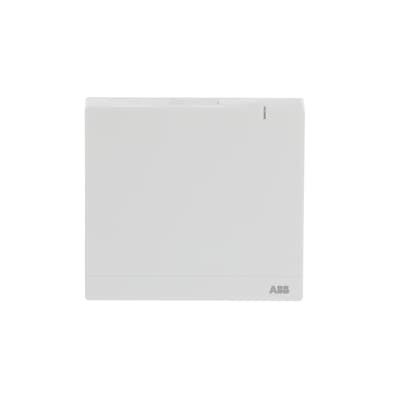

2CKA006200A0155
Part Number: 2CKA006200A0155
Product Information
Extended Description
2CKA006200A0155 ABB: For commissioning and remote control of the ABB-free@home® system. Support for up to 150 free@home participants (independent of whether wireless or wired). With integrated free@home wireless antenna. With integrated free@home bus connection. Easy to mount thanks to the external power adapter (included in the scope of delivery). Optional supply via the yellow/white twisted pair of the bus line (24 V). Allows the execution of astro and time programs. Commissioning and remote control is executed via the web interface or app. No additional commissioning software is required. Easy commissioning with WLAN ad-hoc mode. Connection to the home network via WLAN client mode or via CAT cable. Suitable as table device. Suitable for wall mounting. 2 x USB ports for future extension of functions. 2.4 GHz and 5 GHz WLAN 1 GHz dual core processor 512 MB working storage Scope of delivery: Mounting plate, power adapter, screws and dowels The bus connection is provided via the enclosed bus terminal.
Mounting Type
Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Compatible Bus Systems
free@home (TP) | free@home wireless
Product Range
free@home | free@home Wireless
Transmission Standard
Wireless | Wireless LAN | Ethernet | Twisted Pair Wiring
Rated Voltage (Ur)
230 V
Rated Frequency (f)
50/60 Hz
Product Net Width
117 mm
Product Net Height
30 mm
Product Net Depth / Length
106 mm
Product Net Weight
345 g
E-Number (Finland)
2814617
E-Number (Norway)
4549782
E-Number (Sweden)
1701284
RoHS Information
RoHS Product Declaration.PDF [EN] SAP/S.3
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
68e9c800-c506-4a67-b7cd-c9769c5f2f23 Germany (DE)
Simplified SCIP
68e9c800-c506-4a67-b7cd-c9769c5f2f23 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SAP/S.3
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] SAP/S.3
ETIM 9
EC000699 - Central device for bus system
eClass
V11.0 : 27143117
UNSPSC
39121801
