2CKA006220A0003
Part Number: 2CKA006220A0003
Product Information
Extended Description

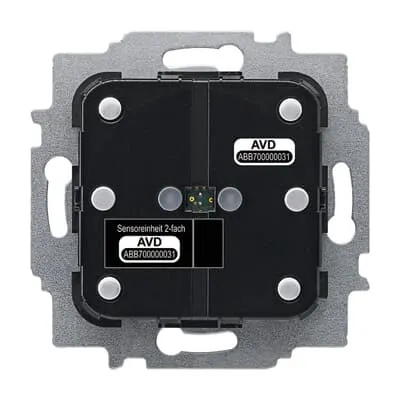

2CKA006220A0003 ABB: For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. The bus can be connected via enclosed terminal block.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Control Element
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Number of Buttons
2
Number of Actuation Points
4
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Material
Thermoplastic
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
19 mm
Product Net Weight
45.5 g
Built-In Depth (t2)
9 mm
RoHS Information
Product Declaration.PDF [EN] 6221/2.0
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6221/2.0
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
