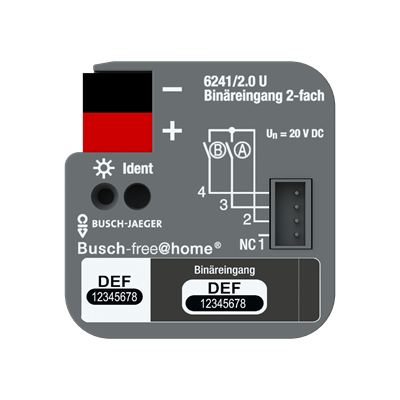

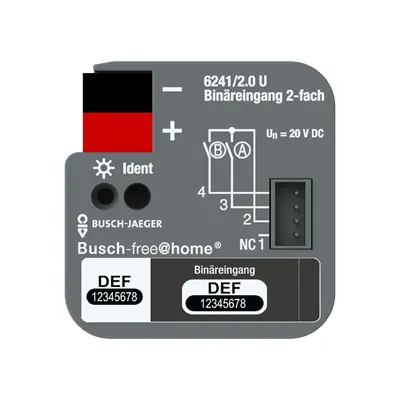

2CKA006220A0004
Part Number: 2CKA006220A0004
Product Information
Extended Description
2CKA006220A0004 ABB: Conventional push-buttons or auxiliary contacts can be connected to 2 channels. The information of the contact enquiry can be used for activating ABB-free@home® actuators or for recording status information. The contact polling voltage is made available from the binary input itself. Extension of the connecting cables possible by a maximum of 10 m. Flush-mounted device for installation in a 60 mm device box or distribution box. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 6241/2.0 U
Mounting Type
Flush Mounted
Modular Components Included
Complete Device
Degree of Protection
IP20
Data Sheet, Technical Information
2CKA000001A1593
Number of LEDs
1
Number of Digital Inputs
2
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 2
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Input Voltage (Uin)
20 V
Input Voltage Type
Pulsed
Color
grey
Product Net Width
12 mm
Product Net Height
39 mm
Product Net Depth / Length
40 mm
Product Net Weight
0.043 kg
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) 6241/2.0 U
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
