2CKA006220A0006
Part Number: 2CKA006220A0006
Product Information
Extended Description

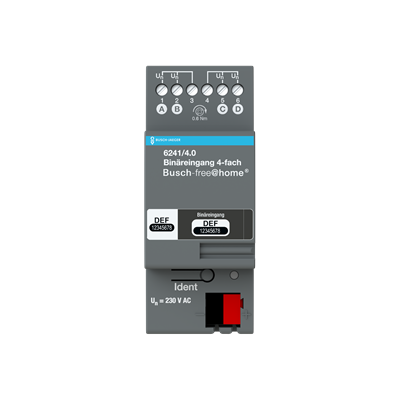

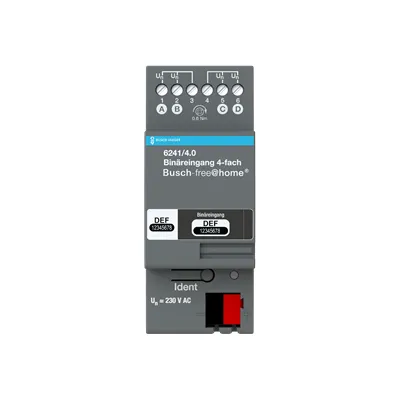

2CKA006220A0006 ABB: The device detects AC/DC signals of 10 - 230 V via 4 channels. The information of the signal evaluation can be used for controlling ABB-free@home® actuators or for recording status information. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] 6241/4.0
Wiring Diagram
Connection diagram (.JPG) [DE] 6241/4.0
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
2CKA000001A1593
Number of LEDs
1
Number of Digital Inputs
4
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Input Voltage (Uin)
10 ... 230 V
Input Voltage Type
AC/DC
Power Loss
1.6 W
Color
grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64 mm
Product Net Weight
0.02 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
Replacement Product ID (NEW)
2CDG510016R0021
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) 6241/4.0
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
