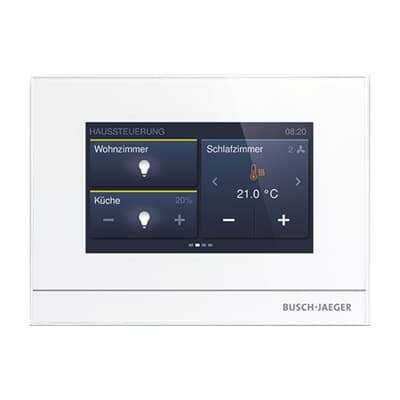

2CKA006220A0007
Part Number: 2CKA006220A0007
Product Information
Extended Description
2CKA006220A0007 ABB: For the central control of up to 16 configurable ABB-free@home® functions. For the display of configurable system messages. A configurable primary function can be triggered with a multi-touch gesture. Capacitive touch screen with closed glass surface. With integrated room temperature controller and temperature sensor. In connection with temperature sensor 6226/T the integrated room temperature controller can be fitted with a remote sensor. Suitable as room temperature controller extension unit (up to 8). Requires additional power supply 24 VDC e.g. 6358-101. Power consumption: 150 mA Display size: 10.9 cm (4.3'') Display resolution: 480 x 854 Mounting height: 8 mm
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6226-XXX DP4-1-XXX
Mounting Type
Flush Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +40 °C
Degree of Protection
IP20
Data Sheet, Technical Information
System Manual (.HTM) [DE] Busch-free@home
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Number of Batteries
0
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
Color
white
Product Net Width
133 mm
Product Net Height
92 mm
Product Net Depth / Length
53 mm
Product Net Weight
500 g
Built-In Depth (t2)
50 mm
Screen Size
4.3 in
RoHS Information
Product Declaration.PDF [EN] 6226-611
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
3aeee31f-349c-4ff8-b11c-45eac332ff94 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product Declaration.PDF [EN] 6226-611
ETIM 9
EC000677 - Display for bus system
