2CKA006220A0010
Part Number: 2CKA006220A0010
Product Information
Extended Description

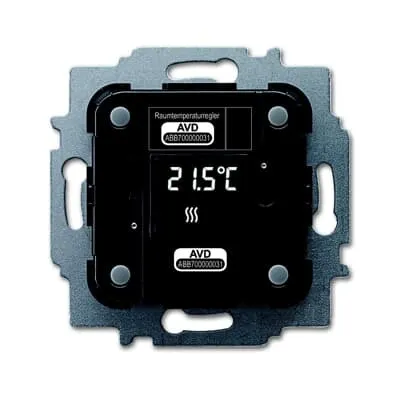

2CKA006220A0010 ABB: Heating/cooling operation. Control element with room temperature controller function for controlling commercially available actuating drives in connection with 6254/0.6, 6254/0.12. With display of set-value temperature. For contacting cover plate 6235-XX or 6236-xx The bus can be connected via enclosed terminal block.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Control Element
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-balance SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Material
Thermoplastic
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
31 mm
Product Net Weight
45.5 g
Built-In Depth (t2)
14 mm
Screen Size
1 in
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6224/2.0
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
