2CKA006220A0026
Part Number: 2CKA006220A0026
Product Information
Extended Description

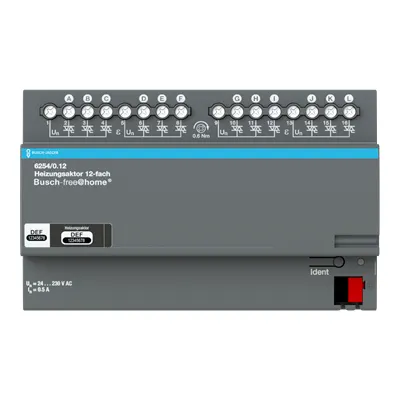

2CKA006220A0026 ABB: For controlling thermoelectric actuating drives in heating/cooling systems. Up to 3 actuating drives 6164/10-102 or 1 actuating drive 6164/11-102 can be connected per output. The outputs are protected against short-circuit and overload. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6254/0.12
Wiring Diagram
Connection diagram (.JPG) [DE] 6254/0.12
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
2CKA000001A1593
Number of Outputs
12
Compatible Bus Systems
free@home (TP)
Manipulated Variable
Continious
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Output Voltage (Uout)
24 ... 230 V AC
Maximum Switching Current
0.75 A
Output Current Maximum (Iout)
0.16 A
Power Loss
4 W
Color
grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.24 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6254/0.12
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
