2CKA006220A0027
Part Number: 2CKA006220A0027
Product Information
Extended Description

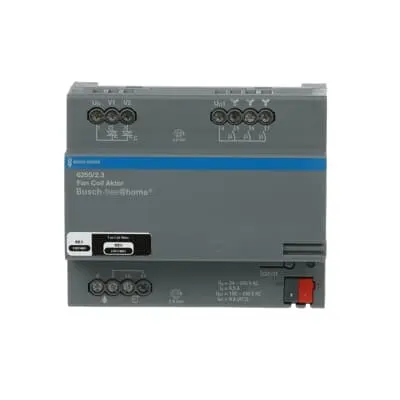

2CKA006220A0027 ABB: For controlling blower convectors. Supports 2-pipe and 4-pipe system for heating and cooling. The fan speed levels can be switched using a changeover or step switch function. Three contacts for switching a three-stage fan. Two contacts for activating the heating and cooling valves. Supports 24V and 230V valves. With two binary inputs for connecting dewpoint and condensation contacts. The scanning voltage is provided by the device. The bus connection is provided via the enclosed bus terminal.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] FCA-M-2.3.1 / 6255/2.3
Wiring Diagram
Connection diagram (.JPG) [DE] 6255/2.3
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
2CKA000001A1593
Special Functions
Valve Protection
Number of Outputs
3
Number of Digital Inputs
2
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
6 A
Output Current Maximum (Iout)
6 A
Power Loss
3 W
Color
grey
Width in Number of Modular Spacings
6.0
Product Net Width
108 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.3 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 6MW
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) 6255/2.3
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
