2CKA006220A0029
Part Number: 2CKA006220A0029
Product Information
Extended Description

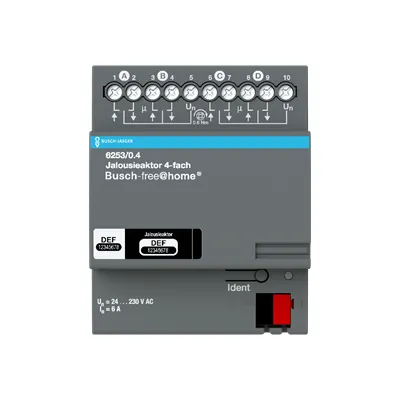

2CKA006220A0029 ABB: For controlling 4 independent blind or roller shutter drives. The outputs are inversely blocked. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] 6253/0.4
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
2CKA000001A1593
Special Functions
Switching
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Current Type
AC/DC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
6 A
Maximum Switching Power
1200 W
Power Loss
0.25 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.22 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
Replacement Product ID (NEW)
2CDG510028R0021
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6253/0.4
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
