2CKA006220A0118
Part Number: 2CKA006220A0118
Product Information
Extended Description

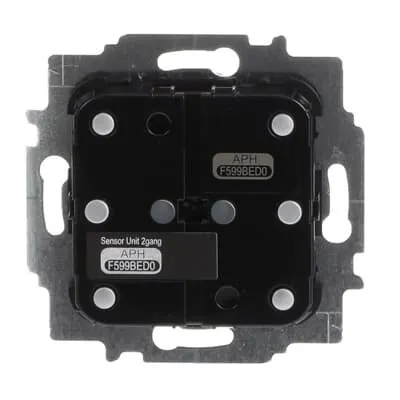

2CKA006220A0118 ABB: For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. The bus can be connected via enclosed terminal block.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert with Control Element
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [ZH] SU-F-1.0.1 SU-F-2.0.1
Number of Buttons
2
Number of Actuation Points
4
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Design Range
Platform 63 | Busch-Duro 2000 SI | Reflex SI | Busch-art linear | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear | Reflex SI | Reflex SI Linear | Busch-art linear | Busch-art linear - with Decor Ring | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Product Net Width
71 mm
Product Net Height
71 mm
Product Net Depth / Length
17.9 mm
Product Net Weight
46.5 g
Built-In Depth (t2)
9 mm
E-Number (Finland)
2815504
E-Number (Norway)
4549512
E-Number (Sweden)
1701052
RoHS Information
Product Declaration.PDF [EN] SU-F-2.0.1
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SU-F-2.0.1
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] SU-F-2.0.1
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
UNSPSC
39121801
