2CKA006220A0218
Part Number: 2CKA006220A0218
Product Information
Extended Description

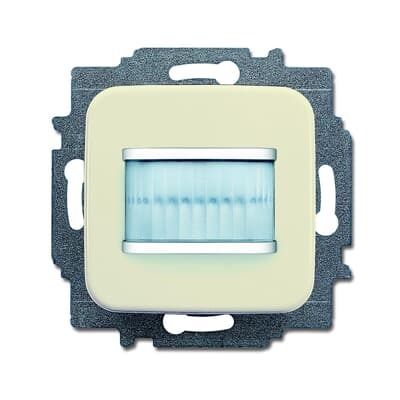

2CKA006220A0218 ABB: With select lens for detection with animal access. For automatic switching of ABB-free@home® actuators dependent on movement and brightness. Switch-off delay of the actuator can be programmed via the web interface of the System Access Point. The bus can be connected via enclosed terminal block.
Mounting Type
Flush Mounted
Mounting Position
vertical
Mounting Height
Optimum 1.1 ... 1.3 m
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
2CKA001173B8565
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Sensor Detection Range
Horizontal 180...180 ° | Vertical 19...19 °
Design Range
Busch-Duro 2000 SI
Design Range Variant
Busch-Duro 2000 SI | Busch-Duro 2000 SI Linear
Surface Finishing
Untreated | Glossy
Material
Duroplast
RAL Number
Similar to RAL 1013
Color
white
Product Net Width
0.228 m
Product Net Height
0.03 m
Product Net Depth / Length
0.02 m
Product Net Weight
55 g
Built-In Depth (t2)
9 mm
RoHS Information
Product Declaration.PDF [EN] MD-F-1.0.1-212
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] MD-F-1.0.1-212
ETIM 9
EC001582 - Movement sensor for bus system
eClass
V11.0 : 27143144
