2CKA006220A0239
Part Number: 2CKA006220A0239
Product Information
Extended Description

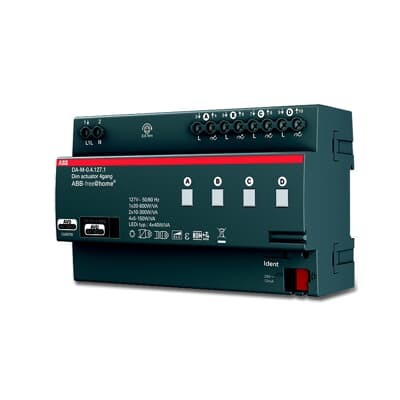

2CKA006220A0239 ABB: Multi-channel universal dimming actuator for controlling LEDs, incandescent lamps, 127 V/230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lam For dimmable Retrofit-LEDs (LEDi). Increasing the max. load via channel bridging possible. The outputs can be switched parallel in any combination. Outputs automatically recognise the connected load. In addition, the operating mode can be selected manually. Status indication of the channels via LED. The bus can be connected via enclosed terminal block.
Mounting Type
Mounted Din Rail Component
Ambient Air Temperature
Operation -5...45 °C
Degree of Protection
IP20
Number of Outputs
4
Product Range
free@home
Rated Voltage (Ur)
127 V
Auxiliary Voltage AC/DC
127 V AC/DC
Rated Frequency (f)
50...60 Hz
Width in Number of Modular Spacings
8
Product Net Width
14.4 cm
Product Net Height
9 cm
Product Net Depth / Length
6.4 cm
Product Net Weight
0.383 kg
Replaced Product ID (OLD)
6220-0-0239
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Declaration of Conformity - CE
ROHS-Product-Declaration 6220-0-0239
