2CKA006220A0240
Part Number: 2CKA006220A0240
Product Information
Extended Description

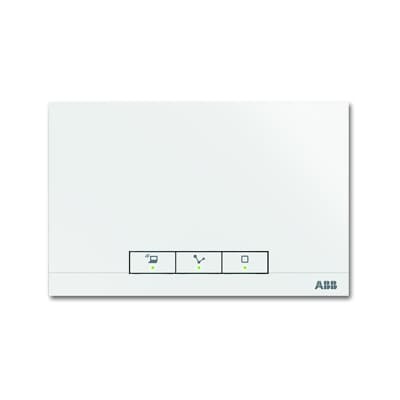

2CKA006220A0240 ABB: For commissioning and remote control of the ABB-free@home® system. Allows the execution of astro and time programs. Commissioning and remote control is executed via the web interface or app. No additional commissioning software is required. Easy commissioning with WLAN ad-hoc mode. Connection to the home network via WLAN client mode or via CAT cable. The bus can be connected via enclosed terminal block.
Instructions and Manuals
System-Access-Point 6200 Instruction
Mounting Type
Surface Mounted
Ambient Air Temperature
Operation -5...45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] SAP-S-127.1 SAP-S-1-84
Communication Interface
Ethernet
Product Range
free@home
Rated Voltage (Ur)
127 V
Auxiliary Voltage AC/DC
127 V AC/DC
Rated Frequency (f)
50...60 Hz
Product Net Width
17 cm
Product Net Height
11 cm
Product Net Depth / Length
3.1 cm
Product Net Weight
0.279 kg
Replacement Product ID (NEW)
2CKA006200A0130
Replaced Product ID (OLD)
6220-0-0240
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SAP-S-127.1
