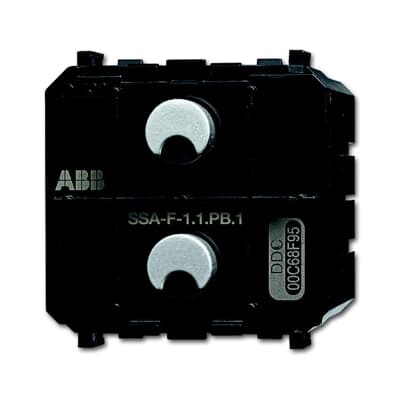

2CKA006220A0267
Part Number: 2CKA006220A0267
Product Information
Extended Description
2CKA006220A0267 ABB: For switching 127 V~/230 V~ consumers. With integrated switch actuator. Switching function is available also without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. The bus can be connected via enclosed terminal block. When installing in the flush-mounted box, a spatial division between the bus cable and 127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Outputs
1
Maximum Number of Switching Outputs
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Voltage Range
230 ... 230 V
Rated Current (In)
10 A
Maximum Switching Current
10 A
Maximum Switching Power
2300 W
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Product Net Width
44 mm
Product Net Height
44 mm
Product Net Depth / Length
41 mm
Product Net Weight
48.5 g
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] SSA-F-1.1.PB.1-508
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SSA-F-1.1.PB.1-508
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
