2CKA006220A0277
Part Number: 2CKA006220A0277
Product Information
Extended Description

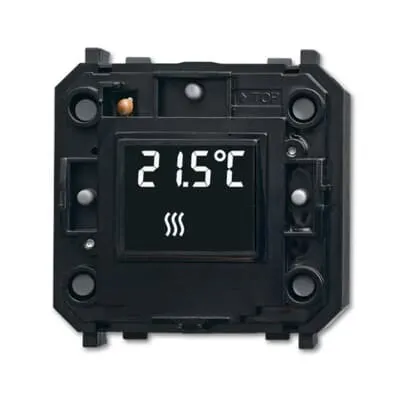

2CKA006220A0277 ABB: Heating/cooling operation. Control element with room temperature controller function for controlling commercially available actuating drives in connection with 6254/0.6, 6254/0.12. With display of set-value temperature. For contacting cover plate 6235-XX or 6236-xx The bus can be connected via enclosed terminal block.
Mounting Type
Flush Mounted
Modular Components Included
Flush Mounted Insert
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Battery Weight
0 g
Terminal Type
Bus Connection
Product Net Width
0.009 m
Product Net Height
0.091 m
Product Net Depth / Length
0.075 m
Product Net Weight
46 g
Built-In Depth (t2)
14 mm
Screen Size
1 in
RoHS Information
Product Declaration.PDF [EN] RTC-F-1.PB-508
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] RTC-F-1.PB-508
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
