2CKA006220A0394
Part Number: 2CKA006220A0394
Product Information
Extended Description

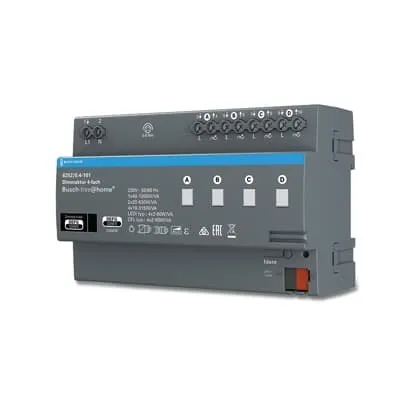

2CKA006220A0394 ABB: Multi-channel universal dimming actuator for controlling LEDs, incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps. For dimmable Retrofit-LEDs (LEDi). Increasing the max. load via channel bridging possible. The outputs can be switched parallel in any combination. Outputs automatically recognise the connected load. ./. In addition, the operating mode can be selected manually. Status indication of the channels via LED. The bus can be connected via enclosed terminal block.
Mounting Type
Mounted Din Rail Component
Ambient Air Temperature
Operation -5...45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
2CKA000001A1593
Number of Outputs
4
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Number of Batteries
0
Rated Voltage (Ur)
230 V
Auxiliary Voltage AC/DC
230 V AC/DC
Rated Frequency (f)
50...60 Hz
Width in Number of Modular Spacings
8
Product Net Width
14.4 cm
Product Net Height
9 cm
Product Net Depth / Length
6.4 cm
Product Net Weight
0.384 kg
Replacement Product ID (NEW)
2CKA006220A0837
Replaced Product ID (OLD)
6220-0-0394
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product Declaration.PDF [EN] 6252/0.4-101
