2CKA006220A0667
Part Number: 2CKA006220A0667
Product Information
Extended Description

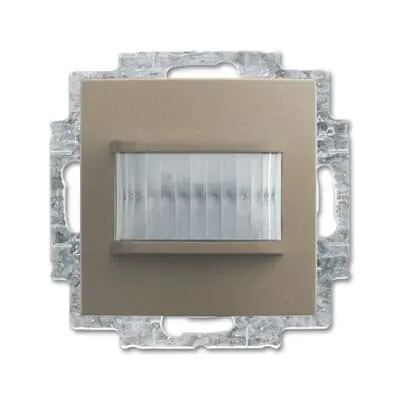

2CKA006220A0667 ABB: With select lens for detection with animal access. For automatic switching of ABB-free@home® actuators dependent on movement and brightness. Switch-off delay of the actuator can be programmed via the web interface of the System Access Point. For switching 127 V~/230 V~ consumers. With integrated switch actuator. Switching function is available also without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). The bus can be connected via enclosed terminal block. When installing in the flush-mounted box, a spatial division between the bus cable and 127 V/230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.
Mounting Type
Flush Mounted
Mounting Position
vertical
Mounting Height
Optimum 1.1 ... 1.3 m
Modular Components Included
Cover with Flush Mounted Insert and Mounting Plate
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Outputs
1
Number of Channels
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Minimum Switching Time
Switch-On 30 second [unit of time]
Number of Batteries
0
Sensor Detection Range
Horizontal 180...180 ° | Vertical 19...19 °
Rated Current (In)
10 A
Maximum Switching Power
2300 W
Load Type
Resistive load
Design Range
Basic55
Surface Finishing
Lacquered | Glossy
Material
Thermoplastic
Color
champagne
Product Net Width
0.018 m
Product Net Height
0.102 m
Product Net Depth / Length
0.075 m
Product Net Weight
0.16 kg
Built-In Depth (t2)
32 mm
RoHS Information
Product Declaration.PDF [EN] MSA-F-1.1.1-93
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product Declaration.PDF [EN] MSA-F-1.1.1-93
ETIM 9
EC001582 - Movement sensor for bus system
eClass
V11.0 : 27143144
