2CKA006220A0729
Part Number: 2CKA006220A0729
Product Information
Extended Description

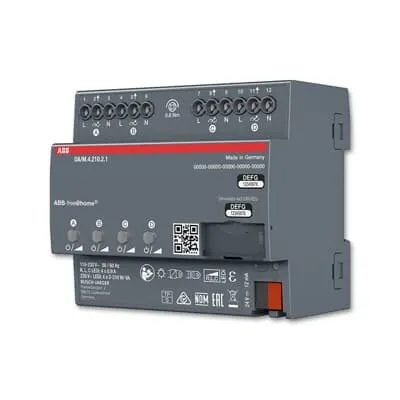

2CKA006220A0729 ABB: Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps. Automatic load detection (can be deactivated). Separate N-connection per channel. Parallel connection of the outputs possible to increase the output power. Outputs can be connected in parallel in any configuration. Minimum load: 2 W. Manual operation on device also possible without bus voltage or in an unprogrammed status. Programming of the device also possible without applied 230V supply voltage. With integrated bus coupler. Nominal power at 230 V~ mains voltage: 230 V~ incandescent and halogen lamps: 4 x 210 W/VA to 1 x 600 W/VA. Dimmable 230 V~ LEDi: 4 x 210 W/VA to 1 x 600 W/VA in trailing edge control, 4 x 80 W/VA to 1 x 200 W/VA in leading edge control. Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA. Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA. Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 80 W/VA to 1 x 200 W/VA.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] DA/M.4.210.2.1x; DA/M.4.315.2.1x; DA/M.6.210.2.1x
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Outputs
4
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Rated Voltage (Ur)
110 ... 230 V
Rated Operational Voltage
110...230 V
Auxiliary Voltage AC/DC
110 V AC/DC | 230 V AC/DC
Rated Frequency (f)
50 / 60 Hz
Load Type
Universal and LED Retrofit | LEDi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Power Loss
2.3 W
Width in Number of Modular Spacings
8.0
Product Net Width
105 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
207 g
Built-In Depth (t2)
58 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 6MW
E-Number (Finland)
2818983
E-Number (Norway)
4549622
E-Number (Sweden)
1701285
RoHS Information
RoHS Product Declaration.PDF [EN] DA/M.4.210.2.1
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of conformity (.PDF) [EN] DA/M.4.210.2.1
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] DA_M.4.210.2.1
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
