2CKA006220A0875
Part Number: 2CKA006220A0875
Product Information
Extended Description

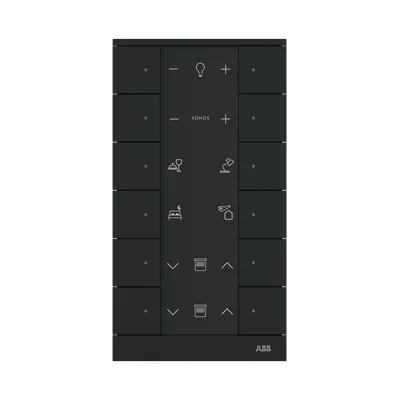

2CKA006220A0875 ABB: For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. With integrated bus coupler. With labelling field. With integrated room temperature controller for direct control of heating actuators Setpoint temperature can be adjusted via App or Panels. Number of bus subscribers: 1
Instructions and Manuals
2CKA000073B5345
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Actuation Points
12
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Tenton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9005
Color
black matt
Product Net Width
117.1 mm
Product Net Height
44.2 mm
Product Net Depth / Length
90.1 mm
Product Net Weight
178 g
Built-In Depth (t2)
30.7 mm
E-Number (Finland)
2830041
E-Number (Norway)
4549641
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [DE] SB-F-12.0.1-885
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] SB-F-12.0.1-885
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
UNSPSC
39121801
