2CKA006220A0876
Part Number: 2CKA006220A0876
Product Information
Extended Description

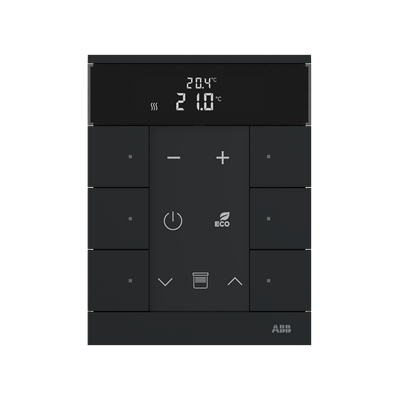

2CKA006220A0876 ABB: Control element with room temperature controller function. For controlling commercially available actuating drives in combination with free@home Heating-/Fan-Coil Actuators. With display of set-value and current temperature. For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. With integrated bus coupler. With labelling field. Number of bus subscribers: 1
Instructions and Manuals
2CKA000073B5345
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Temperature Class Default
I
Number of LEDs
6
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Tenton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9005
Color
black matt
Product Net Width
90.1 mm
Product Net Height
117.1 mm
Product Net Depth / Length
44.2 mm
Product Net Weight
123 g
Built-In Depth (t2)
30.7 mm
E-Number (Finland)
2830042
E-Number (Norway)
4549642
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [DE] SBR-F-6.0.1-885
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] SBR-F-6.0.1-885
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
UNSPSC
39121803
