2CKA006220A0890
Part Number: 2CKA006220A0890
Product Information
Extended Description

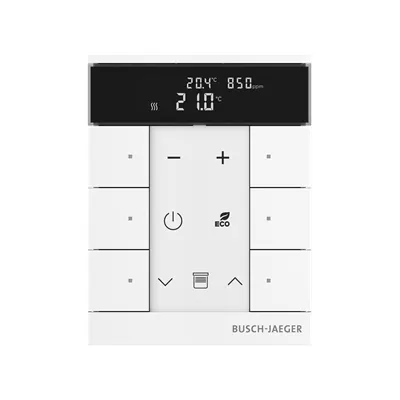

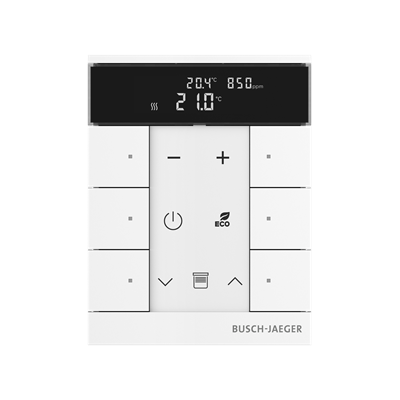

2CKA006220A0890 ABB: Control element with room temperature controller function and CO2/VOC/moisture sensor. For controlling commercially available actuating drives in combination with free@home Heating-/Fan-Coil Actuators. With display of set-value and current temperature. For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. With integrated bus coupler. With labelling field. Number of bus subscribers: 2
Instructions and Manuals
2CKA000073B5345
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Temperature Class Default
I
Number of LEDs
6
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Tenton
Surface Finishing
Untreated | Glossy
Material
Thermoplastic
RAL Number
Similar to RAL 9016
Color
studio white
Product Net Width
90.1 mm
Product Net Height
117.1 mm
Product Net Depth / Length
44.2 mm
Product Net Weight
154 g
Built-In Depth (t2)
30.7 mm
RoHS Information
EU-Declaration of conformity (.PDF) [EN] SBC-F-6.0.11-84
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
dd459c78-57c4-4327-8628-2fe73f5b0a2f Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SBC-F-6.0.11-84
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
