2CKA006220A0999
Part Number: 2CKA006220A0999
Product Information
Extended Description

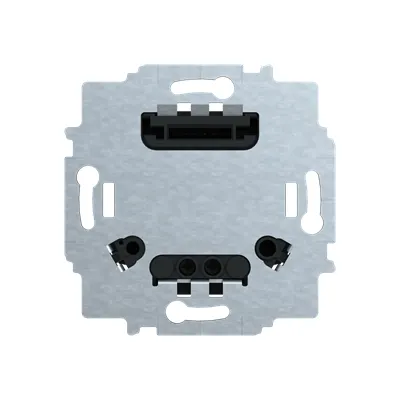

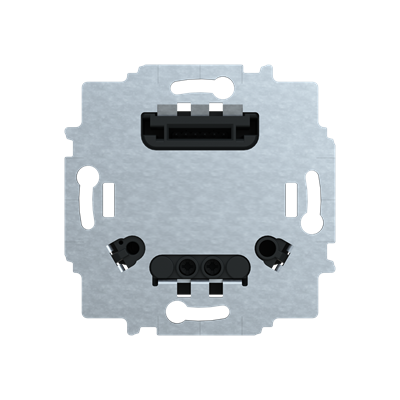

2CKA006220A0999 ABB: ABB-free@home® bus coupler unit for keypad 1- up to 4-fold devices:
- KK/U4.63.xx
- KK/U4.55.xx
- KK/U4.70.xx.
Bus connection via enclosed terminal block.
Mounting Type
Flush Mounted
Type of Fastening
Mounting with Screw
Modular Components Included
Flush Mounted Insert with Mounting Plate
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of Connections
Number of connections sensor/actuator: 1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Connection Type
Pin
Terminal Type
Bus Connection
Rated Voltage (Ur)
24 V
Rated Current (In)
24 mA
Design Range
Trevion | Busch-art linear | Platform 63 | future linear | Busch-axcent | solo | Pure Stainless Steel | carat | Busch-Dynasty | Busch-balance SI | ALBA Touch | SkyTouch | SAGA Touch
Design Range Variant
Busch-art linear | Busch-art linear - pur | future | future linear | Busch-axcent | Busch-axcent pur
Width in Number of Modular Spacings
0.0
Product Net Width
71 mm
Product Net Height
87.17 mm
Product Net Depth / Length
32.7 mm
Product Net Weight
56.2 g
Built-In Depth (t2)
32 mm
E-Number (Finland)
2815722
EcoSolutions Profile
Environmental Product Declaration (.PDF) [EN] TREVION® 55
RoHS Information
RoHS - Product Declaration (.PDF) [EN] BAU-F-0.1
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] BAU-F-0.1
ETIM 9
EC000634 - Bus coupler for bus system
eClass
V11.0 : 27143108
