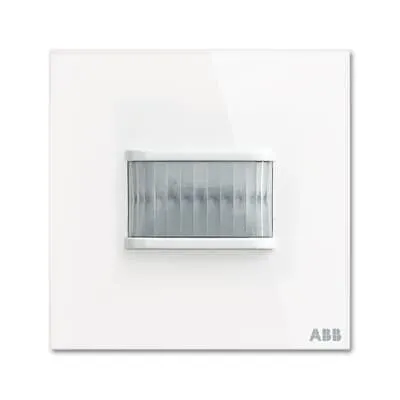

2CKA006300A1548
Part Number: 2CKA006300A1548
Product Information
Extended Description
2CKA006300A1548 ABB: Ordering possible only in connection with the design ID. Movement detector with up to 4 channels. The bus can be connected via enclosed terminal block. With integrated temperature sensor. With integrated KNX bus coupler. Number of bus subscribers: 1
Mounting Type
Flush Mounted
Mounting Position
vertical
Mounting Height
Optimum 1.1 ... 1.3 m
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Measuring Range
6 m
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Minimum Switching Time
Switch-On 10 second [unit of time]
Terminal Type
Bus Connection
Sensor Detection Range
Horizontal 0 ... 180 °
Design Range
tacteo
Material
Thermoplastic
Product Net Width
86 mm
Product Net Height
86 mm
Product Net Depth / Length
37 mm
Product Net Weight
95.8 g
E-Number (Finland)
2814644
E-Number (Sweden)
1739662
RoHS Information
Product Declaration.PDF [EN] TBW/U.1.1-CG
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] TBW/U.1.1-CG
Declaration of Conformity - UKCA
UKCA Declaration of Conformity.PDF [EN] TBW_U.1.1-CG
ETIM 9
EC000138 - Sensor element for movement sensor
eClass
V11.0 : 27144008
UNSPSC
39122236
