2CKA006300A1570
Part Number: 2CKA006300A1570
Product Information
Extended Description

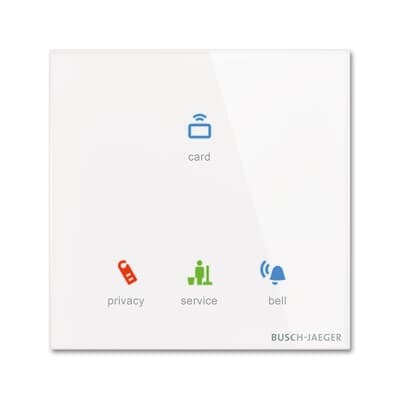

2CKA006300A1570 ABB: Ordering possible only in connection with the design ID. The icons and/or texts are configured by means of a web configuration tool. Freely programmable function >Do not disturb<, >Bell< and >Make up room<. For reading mifare RF cards. Push switch function: switching / dimming / blind / sending values / scenes etc. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. With integrated KNX bus coupler. The bus connection is provided via the enclosed bus terminal. Number of bus subscribers: 1 with separate 24 V auxiliary power supply
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Battery Weight
0 g
Design Range
tacteo
Surface Finishing
Untreated | Glossy
Material
Glass
Product Net Width
86 mm
Product Net Height
86 mm
Product Net Depth / Length
34 mm
Product Net Weight
104.4 g
RoHS Information
Product Declaration.PDF [EN] TLM/U.1.11-CG
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
DEBJE-2CKA006300A1570-ROHS
ETIM 9
EC000782 - Access control unit for bus system
eClass
V11.0 : 27143141
