2CKA006310A0019
Part Number: 2CKA006310A0019
Product Information
Extended Description

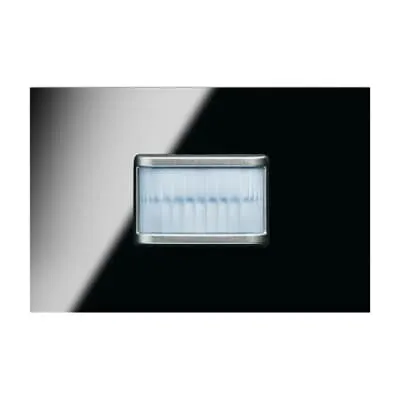

2CKA006310A0019 ABB: Movement detector with up to 4 channels. For installation in the 1gang, 2gang and 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101)
Mounting Type
Flush Mounted
Mounting Position
vertical
Mounting Height
Optimum 1.1 m
Modular Components Included
Cover Plate
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] PRION
Measuring Range
6 m
Number of Channels
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Sensor Detection Range
Horizontal 0 ... 180 ° | Vertical 0...5 °
Design Range
priOn
Surface Finishing
Untreated | Glossy
Material
Glass
Color
glass black
Product Net Width
107 mm
Product Net Height
71 mm
Product Net Depth / Length
31 mm
Product Net Weight
150 g
Dimension Diagram
Dimension drawing [EN] m_6345
RoHS Information
Product Declaration.PDF [EN] 6345-825-101
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6345-825-101
ETIM 9
EC001582 - Movement sensor for bus system
eClass
V11.0 : 27143144
