2CKA006320A0008
Part Number: 2CKA006320A0008
Product Information
Extended Description

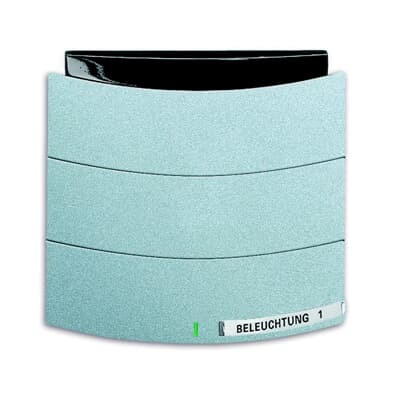

2CKA006320A0008 ABB: With integrated KNX bus coupler. With labelling field. Transparent labelling sheet with standard symbols included in delivery. Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function).
Instructions and Manuals
DEBJE-ba_73_1_7426_6320-500-Man
Mounting Type
Flush Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [EN] 6320/xx-xx-500 6321/xx-xx-500
Number of Actuation Points
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Design Range
Triton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9006
Color
aluminium silver
Product Net Width
90 mm
Product Net Height
84 mm
Product Net Depth / Length
33 mm
Product Net Weight
59 g
Built-In Depth (t2)
10 mm
E-Number (Finland)
2815380
E-Number (Norway)
4546745
E-Number (Sweden)
1750275
RoHS Information
Product Declaration.PDF [EN] 6320/10-83-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6320/10-83-500
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
