2CKA006320A0066
Part Number: 2CKA006320A0066
Product Information
Extended Description

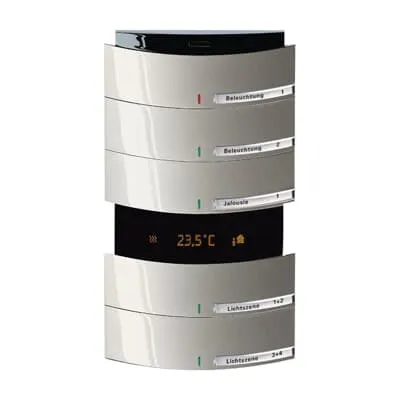

2CKA006320A0066 ABB: With integrated KNX bus coupler. With labelling field. Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function). Master/slave configuration. With base-load operation. Control element with room thermostat function for triggering the heating, ventilation and fan-coil actuators. The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product manual (.PDF) [DE] 6320/xx-xx-500 6321/xx-xx-500
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Design Range
Triton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
Color
champagne metallic
Product Net Width
90 mm
Product Net Height
159 mm
Product Net Depth / Length
33 mm
Product Net Weight
125 g
Built-In Depth (t2)
10 mm
Screen Size
1.85 in
E-Number (Finland)
2815576
E-Number (Sweden)
1750294
RoHS Information
Product Declaration.PDF [EN] 6321/58-79-500
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20230825
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] 6321/58-79-500
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
