2CKA006330A0039
Part Number: 2CKA006330A0039
Product Information
Extended Description

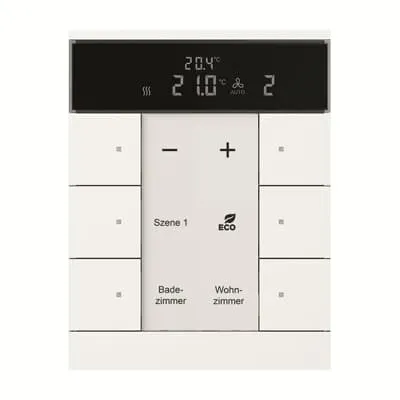

2CKA006330A0039 ABB: Freely configurable multifunction control element. With integrated KNX bus coupler. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. For activating heating, ventilation and fan coil actuators. Master/slave configuration. With base-load operation. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Number of bus subscribers: 1
Instructions and Manuals
2CKA000073BB9649
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Temperature Class Default
I
Number of LEDs
6
Maximum Number of Switching Outputs
33
Number of Gangs
6
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Tenton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9016
Color
studio white matt
Product Net Width
90.1 mm
Product Net Height
117.1 mm
Product Net Depth / Length
44.2 mm
Product Net Weight
122.3 g
Built-In Depth (t2)
30.7 mm
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SBR/U6.0.11-884
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
