2CKA006330A0049
Part Number: 2CKA006330A0049
Product Information
Extended Description

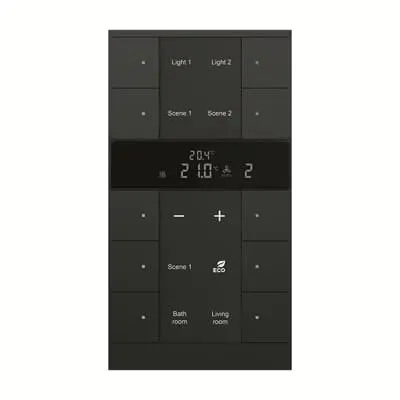

2CKA006330A0049 ABB: Freely configurable multifunction control element. Room temperature control/Controller extension with max. 10gang control With labelling field. Transparent labelling sheet with standard symbols included in delivery. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function). With integrated temperature sensor. With actual value temperature display With display of set-value temperature. The bus can be connected via enclosed terminal block. With integrated KNX bus coupler. Number of bus subscribers: 1
Instructions and Manuals
2CKA000073BB9649
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Temperature Class Default
I
Number of LEDs
10
Maximum Number of Switching Outputs
33
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Tenton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9005
Color
black matt
Product Net Width
90.1 mm
Product Net Height
167.1 mm
Product Net Depth / Length
44.2 mm
Product Net Weight
352.5 g
Built-In Depth (t2)
30.7 mm
E-Number (Finland)
2815694
E-Number (Norway)
4545352
E-Number (Sweden)
1740050
E-Number (Switzerland)
405020605
RoHS Information
RoHS Product Declaration.PDF [EN] SBS/U10.0.1-885
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SBS/U10.0.1-885
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
UNSPSC
39121803
