2CKA006330A0051
Part Number: 2CKA006330A0051
Product Information
Extended Description

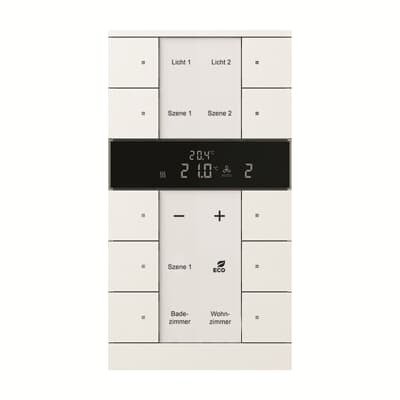

2CKA006330A0051 ABB: Freely configurable multifunction control element. With integrated KNX bus coupler. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. Master/slave configuration. With base-load operation. The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Number of bus subscribers: 1
Instructions and Manuals
2CKA000073BB9649
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Temperature Class Default
I
Number of LEDs
10
Maximum Number of Switching Outputs
33
Number of Gangs
10
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Terminal Type
Bus Connection
Design Range
Tenton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9016
Color
studio white matt
Product Net Width
117.1 mm
Product Net Height
90.1 mm
Product Net Depth / Length
44.2 mm
Product Net Weight
185.5 g
Built-In Depth (t2)
30.7 mm
RoHS Information
Declaration REACH and ElektroG
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250218
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SBR/U10.0.11-884
ETIM 9
EC001101 - Room temperature controller for bus system
eClass
V11.0 : 27143133
