2CKA006330A0079
Part Number: 2CKA006330A0079
Product Information
Extended Description

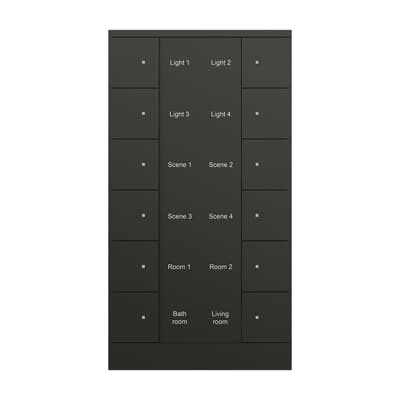

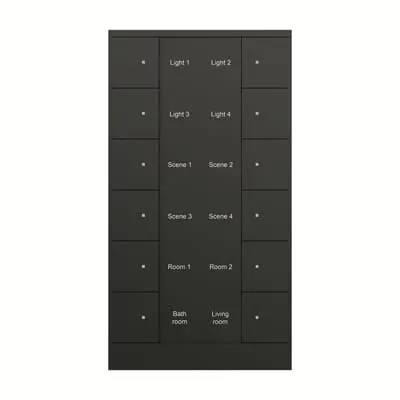

2CKA006330A0079 ABB: With integrated KNX bus coupler. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. With integrated temperature sensor. Number of bus subscribers: 1
Instructions and Manuals
2CKA000073BB9649
Mounting Type
Flush Mounted | Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Number of LEDs
12
Number of Buttons
12
Number of Actuation Points
12
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Design Range
Tenton
Surface Finishing
Lacquered | Matt
Material
Thermoplastic
RAL Number
Similar to RAL 9005
Color
black matt
Product Net Width
167.1 mm
Product Net Height
90.1 mm
Product Net Depth / Length
44.2 mm
Product Net Weight
222.5 g
Built-In Depth (t2)
30.7 mm
E-Number (Finland)
2818901
E-Number (Norway)
4545367
E-Number (Sweden)
1740070
E-Number (Switzerland)
405020805
RoHS Information
RoHS Product Declaration.PDF [EN] SB/U12.0.1-885
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
All Articles_REACH_EN_24-2_2CKA309999E9999
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240705
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SB/U12.0.1-885
ETIM 9
EC000672 - Touch sensor for bus system
eClass
V11.0 : 27143138
UNSPSC
39121801
